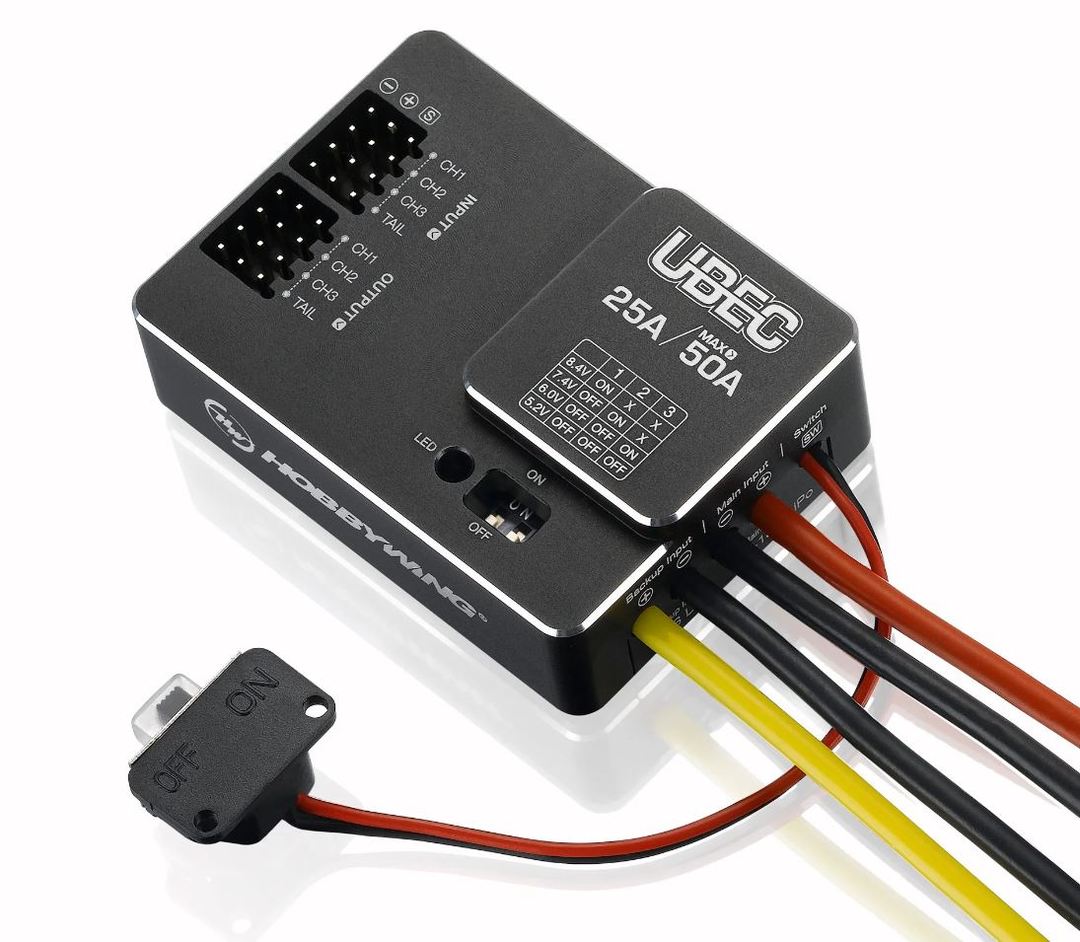

Description Introducing the Hobbywing 25A 3-18S High Voltage UBEC, an external switching-mode DC-DC regulator designed to provide a stable power supply for receivers and other electronic devices in large helicopters and fixed-wing aircraft. This UBEC efficiently steps down voltage from a 3-18S LiPo battery, delivering a continuous current of up to 25A with peak currents reaching 50A. Key Features: High Efficiency: Utilizes a DC-DC regulator chip with a conversion efficiency exceeding 90%, ensuring minimal energy loss. Adjustable Output Voltage: Offers selectable output voltages of 5.2V, 6.0V, 7.4V, and 8.4V to accommodate various servo requirements. Multiple Outputs: Equipped with 8 parallel output channels to enhance current handling capabilities. Comprehensive Protection: Features BEC shoot-through protection, over-current, short-circuit, overheat, and low-voltage cutoff safeguards to ensure reliable operation. Backup Power Support: Includes a backup power input, allowing connected devices to maintain operation if the main power supply is compromised. User-Friendly Design: Comes with an external switch for easy on/off control and an LED indicator to display operational status and backup power connectivity. Robust Construction: Encased in a metal housing that facilitates efficient heat dissipation and reduces electromagnetic interference. Specifications: Specification Details Product Name UBEC 25A HV Product Number 30606000 Type Switching Mode, High Voltage Continuous/Peak Current 25A / 50A Main Power Supply Input Voltage 3S to 18S LiPo (9V to 80V) Backup Power Supply Input Voltage 1S to 2S LiPo (3V to 9V) Output Voltage Options 5.2V / 6.0V / 7.4V / 8.4V (Adjustable) Input Wires Main Power: Red 16AWG 270mm ×1, Black 16AWG 270mm ×1 Backup Power: Yellow 16AWG 150mm ×1, Black 16AWG 150mm ×1 Output Wires 3P Vertical Pin Header (includes four 100mm 60-strand PVC wires with 3P-JR male connectors) Input Connectors None Output Connectors None Dimensions (L×W×H) 55 × 40.2 × 17.6 mm Weight 74g The Hobbywing 25A HV UBEC is engineered to meet the demanding power requirements of high-performance RC models, ensuring reliable and consistent power delivery to all onboard electronics. Keywords: Hobbywing 25A UBEC, 3-18S High Voltage UBEC, RC Aircraft Voltage Regulator, High Current UBEC for Drones, Adjustable Output UBEC
