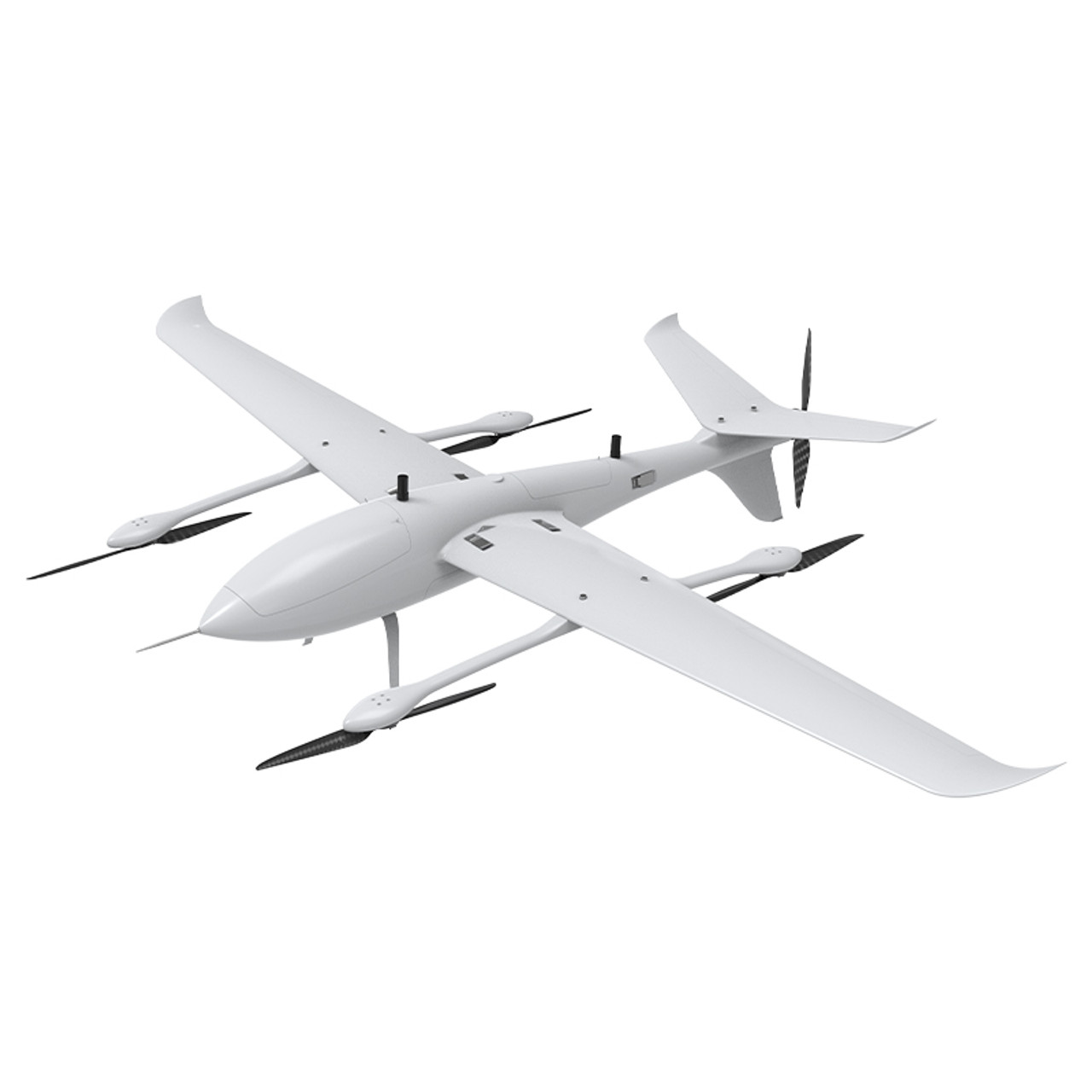

Airmobi V32 Full Electric Long Endurance VTOL Drone – 3 Hours @ 3kg

Description 4.5 hours flight time when unloaded. Over 3 hours of endurance with a 3kg payload. 3 hours 15 minutes endurance with a 2kg payload. 3 hours 48 minutes endurance with a 1kg payload. The Airmobi V32 is a high-endurance tail-push vertical take-off and landing (VTOL) fixed-wing UAV, meticulously designed for long-range inspection and surveying missions. With an impressive endurance of up to 4.5 hours when unloaded, the V32 can handle a maximum payload of 5kg. It achieves more than 3 hours of flight time with a 3kg payload, making it a versatile choice for extended operations requiring significant payload capacity. Price Note: The price of $6999 USD is for the airframe and aluminum tranport case only. We also provide rigorously tested power systems to ensure the optimal performance of the V32 UAV. We offer RTF (Ready-to-Fly) systems; however, due to China’s export control regulations, RTF products are only available for sale within the Chinese market. * V32 Airframe: $6999.00 USD * V32 Airframe with Propulsion System: $14999.00 USD * V32 RTF: $21999.00 USD (only sold in China.) Key Features Extended Endurance: 4.5 hours maximum flight time. Optimized for Long-Range Missions: Ideal for tasks such as long-distance inspections and high-precision mapping. Quick-Release Design: The airframe features a quick-release mechanism for easy transport and rapid assembly. Durable Construction: Built with a combination of carbon fiber, fiberglass, Kevlar, and PVC, ensuring a robust and lightweight structure. Flexible Power Options: Configurable with standard battery setups to meet various mission requirements. Specifications Body Length: 1260mm Wingspan: 3200mm Landing Gear Height: 190mm Structure Weight: Approximately 6450g (including all structural components and mounting parts) Wing Loading: Approximately 250g/dm² Endurance: 228 minutes @ 1kg payload 108 minutes @ 5kg payload Maximum Control Range: Manual Control: 0.5km-1km Ground Station: 5km-30km Standard Cruise Speed: 20m/s @ 23.5kg (21m/s recommended for mountainous operations) Maximum Cruise Speed: 93.6km/h (26m/s) Standard Battery Configuration: 22.8V/32Ah * 2 (45.6V) 22.8V/25Ah * 4 (45.6V) Never-Exceed Speed: 122km/h (approximately 34m/s) Stall Speed: 17m/s @ 23.5kg (16m/s @ roll 25°/pitch 15°) Minimum Turning Radius: 150m @ 20m/s (roll 18°) (safe turning radius not less than 200m at high altitudes) Maximum Flight Altitude: 5000m above sea level Wind Resistance: Fixed-Wing Mode: Up to Beaufort scale 6 (gusts up to 7) Rotor Take-off and Landing Mode: Up to Beaufort scale 4 (gusts up to 6) Operating Environment: -20°C to 45°C; capable of safe operation in light rain (greater than 10 minutes safe operation time) Rotor Emergency Operation Time: Not less than 6.5 minutes (with independent rotor battery, non-standard power configuration) Take-off and Landing Method: Vertical take-off and landing Rotor Propeller Size: 22-24 inches (recommended) Fixed-Wing Tail-Push Propeller: 19-21 inches (recommended) Fixed-Wing Maximum Thrust-to-Weight Ratio: Approximately 0.6 (standard configuration) Safe Voltage When Entering Landing Pattern: Loaded voltage not less than 44.4V (Gens Ace high-voltage batteries) Wing Installation Angle: 2° Pitot Tube Installation: 2 (standard configuration includes a single pitot tube opening) Standard Empty Takeoff Weight: Approximately 17kg The Airmobi V32 is the ideal UAV for missions that demand long endurance, significant payload capacity, and robust performance in diverse environments. Its advanced design and flexible configuration make it a leading choice for professional UAV operations. Power System Configuration (Additionally Charged): VTOL Rotors: T-motor 8-series Motors *4 VTOL ESC: T-motor 80A ESC *4 VTOL Propellers: 26-inch Propellers *2 VTOL Servos: Servos *4 Fixed-Wing Motor: T-motor Motor *1 Fixed-Wing ESC: T-Motor AT ESC *1 24-inch Carbon Fiber Propeller: Propeller *1 Components and Aviation Connectors: Essential components and connectors *1 Flight Control System: X7 *1 Battery Pack: 25000mAh *4
